Want to give your home a cool upgrade? Premium touch switches are your answer! These sleek, modern switches are a sophisticated upgrade to any space. They are especially useful for upgrading an older property during a remodel or adding a classy touch to a brand-new space. These switches will enhance the design and functionality of your home, no matter where they are installed.

Upgrade your home with our sleek premium touch switches, which are meant to make life easier and more attractive. This broad selection includes the following:

16A premium touch switch: Ideally used for powering energy-hungry appliances like ACs or geysers

5A premium touch switch (2CH and 4CH): Ideal for managing small appliances. Choose between 2 and 4 channels to easily control different devices

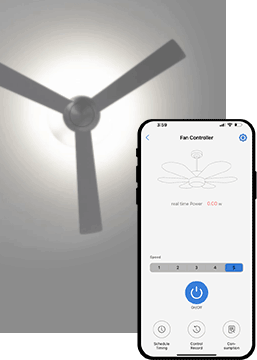

Premium touch fan switch and regulator: Adjust fan speeds with an easy swipe

Premium touch dimmer: Set the mood right with easy LED light dimming and create the ideal ambiance

Premium touch curtain controller: With a single tap, you can open and close your curtains, bringing ease and luxury to your everyday life

Our premium touch switches are completely adaptable and can be integrated with twoway switch combinations to meet your specific needs. Flip, tap, and enjoy the ease of use of these premium offerings

The 16A premium touch switch is a powerhouse, capable of handling heavy-load appliances such as air conditioners and geysers

Our premium touch dimmers personalize the scene with adjustable lighting, while curtain controllers provide smart control over your drapes

Our premium touch switches are specifically created to work with Tata Power EZ HOME switch plates for a seamless fit and performance. They are incompatible with models of other brands, like Anchor or Roma plates. Sticking with the Tata Power switch plates is the way to go for the greatest results

Do you want to make your old switches intelligent? That is precisely what our Tata Power EZ HOME convertors are for! These devices convert your existing conventional switches to smart switches with no fuss. They are retrofittable, which means they can be easily integrated into your existing setup without requiring any kind of wiring. It is ideal for all those who enjoy their existing switch setup but want to add a bit of smart tech magic.

You can enjoy the ease of smart living with our wide collection of convertor switches:

Wi-Fi smart 3 gang 2-way 16A convertor: This switch allows you to easily control your appliances

Wi-Fi smart 2-way fan controller + switch: Use a simple tap or voice command to adjust your fan’s speed

Wi-Fi smart 30A power switch convertor: Ideal for controlling high-power devices such as air conditioners and geysers

Wi-Fi smart LED controller convertor: Perfect for creating your desired ambiance with dimmable LED lights

Wi-Fi smart curtain controller convertor: Automate your curtains to slide open or close simply with the push of a button

Our smart Wi-Fi 30A Convertor allows you to effortlessly manage appliances such as air conditioning units and geysers. Simply connect, tap on your device, and start handling power-hungry appliances with ease

With the help of our Wi-Fi 30A convertor you can ensure the longevity of heavy-duty appliances like geysers and ACs

You can manage so many things at home with our Wi-Fi smart convertor switches. Use the smart Wi-Fi LED controller convertor to adjust your light to create the perfect atmosphere. The Wi-Fi smart curtain controller convertor can open and close your curtains with a snap of the finger, while the Wi-Fi smart 2-way fan controller + switch allows you to turn fans on and off easily

Yes, our EZ HOME convertor switches are designed to work and effortlessly integrate with the two-way switch combinations as per user requirements

Setting up your Tata Power EZ HOME convertor switches is simple. All that is required is a 4M backbox that is just big enough to house the smart convertor switches

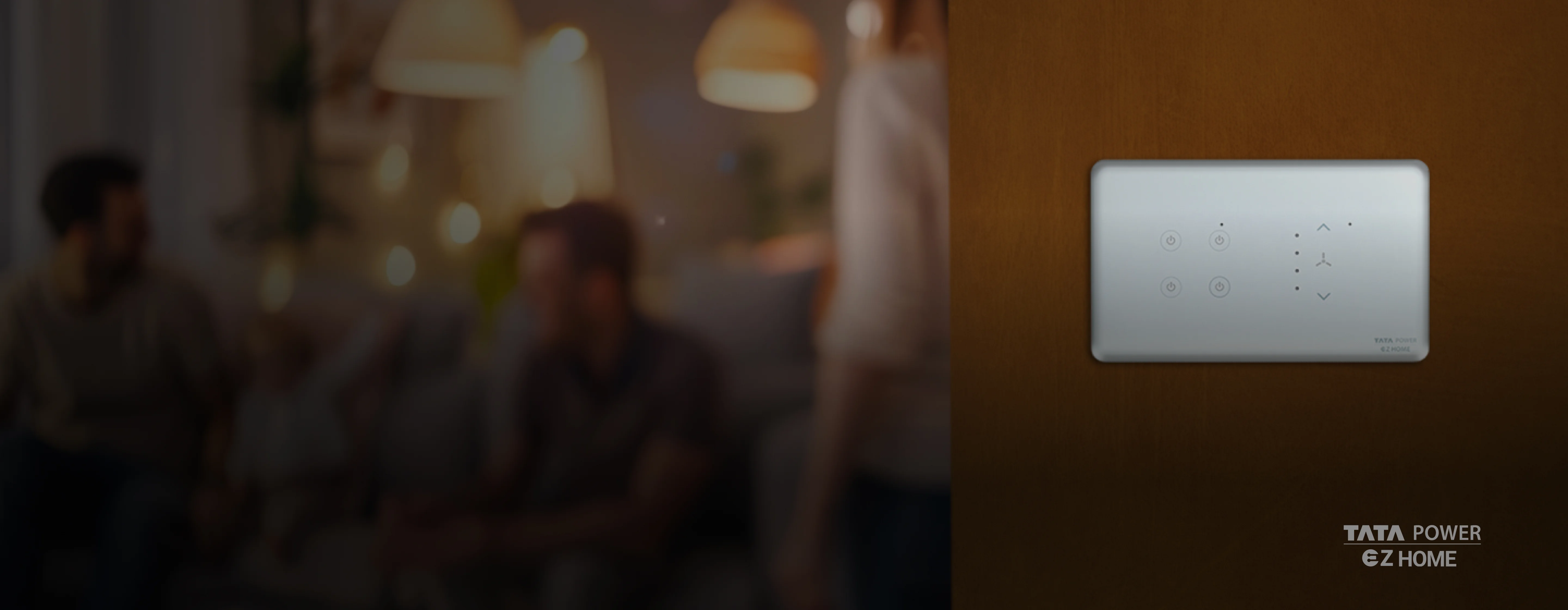

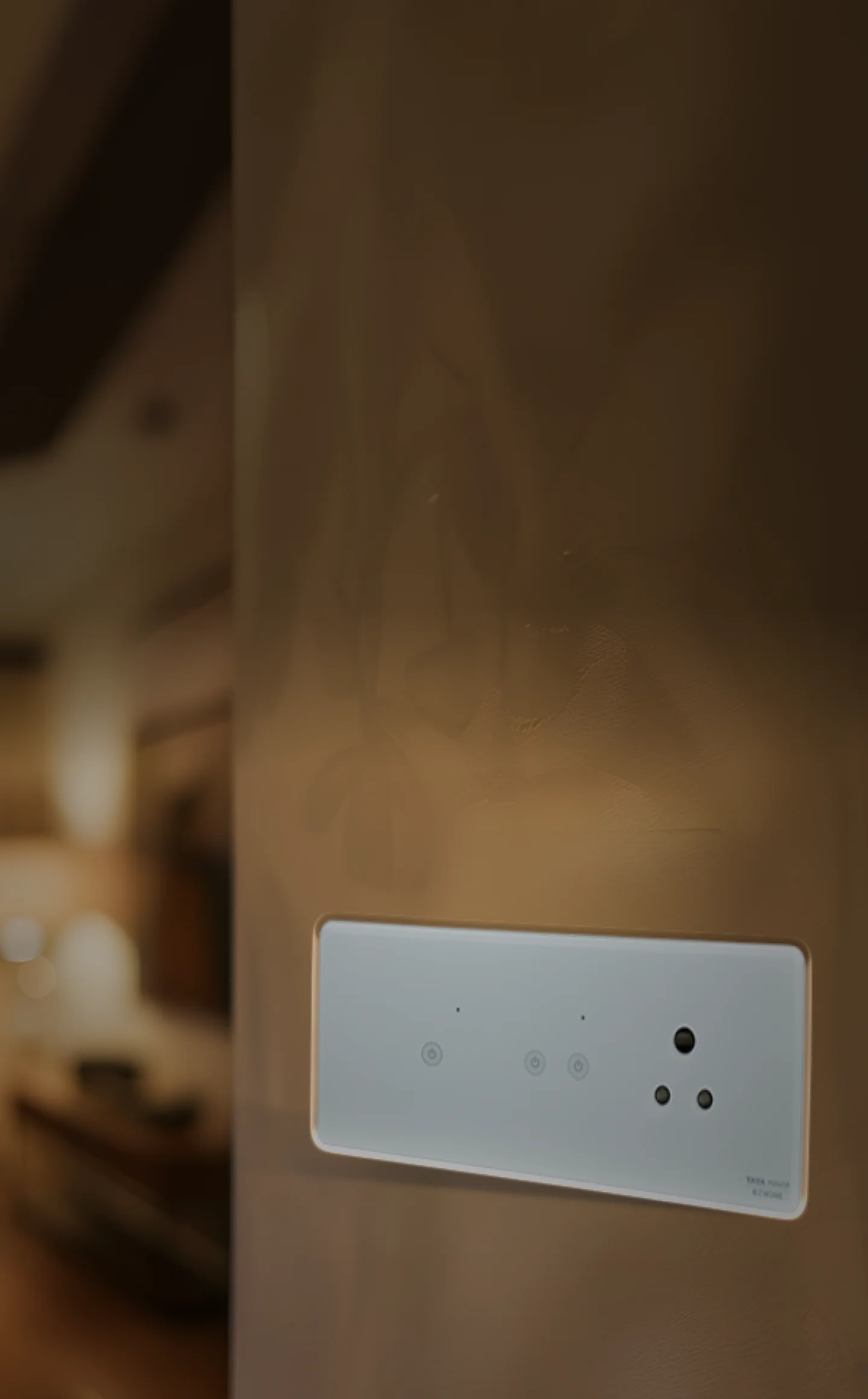

Learn more about our elegant touch panel choices that provide a contemporary look and feel to your home:

Elixir glass touch panel: - The perfect combination of style and function with a sleek, bezelfree glass finish that feels at home in any decor

Elite touch panel: A frameless glass-look acrylic panel ideal for high-end room design

Our elite and elixir touch panels are also customizable, so you can create a touch panel that supports the aesthetics of your smart space. Personalize your experience with a smart space that fits your specific needs to create a ‘futuristic’ lifestyle

The touch panels come in a variety of module options:

Elite touch panel: Available in 2M, 4M, 6M, 8M, and 12M

Elixir glass touch panel: Available in 2M, 4M, 6M, and 8M

Operate lights to turn on or off, change the perfect fan speed, adjust the light’s dimness to set a good mood, or even open or close the curtains from one place. The capabilities of your smart touch panel will vary by model and setup, but it will give you more personalized, powerful control over your space

- PIR motion sensors:

SN-PR 05B: For switching up appliances up to 6A

SN-PR 46B 10A: For switching up appliances up to 10A

SN IRIS S8: For switching up appliances up to 200W

- SN-MW753 microwave motion sensor: Reliable detection for improved automation and energy-saving

In addition to our regular options, we have Wi-Fi-based motion sensors that can be controlled and configured by you through the EZ HOME App. This has a certain convenience factor—the ability to tweak settings right from your phone. We also deliver a non-IoT movement sensor that responds instantly to any movement around it

PIR sensors are great for automating functional applications like motion detection in electrical appliances. Place them in places such as office cabins, washrooms, or conference rooms for a hands-free experience. The sensors in this will make sure the lights and appliances automatically turn on and off as the person moves, increasing both power conservation and user amenities at housing or offices during movement

Microwave sensors are the best choice for installations where you need motion detection to cover large areas with high reliability. Ideal for lighting and device control in hallways, staircases, and lobbies. Plug in these sensors in areas of frequent use to automate light function by motion to provide more comfort and save energy in your area

Both PIR motion sensors and microwave sensors are extremely energy-efficient devices that save more than 50% energy

LUX feature settings on our motion sensors allow you to select day/night, night on, or day on based on the ambient light levels. There is even a time delay feature, allowing you to adjust how long the lights stay on after no movement is detected

We are all about making your lighting smart! We do not have those normal LED lights at Tata Power EZ Home. We have sensor-based dimmable LED lights

LED sensor surmount: Comes in 12W and 18W, and SQ for homes and commercial spaces T5 sensor LED light: A sleek, eco-efficient, intelligent lighting solution

These dimmable lights are integrated with light sensor technology, making sure that you save energy in the best way possible. If no motion is detected, these lights dim to 20%. However, the moment they detect motion, they go all the way back to 100%. This results in energy savings of up to 80%, which in turn makes your space smarter and greener

Dimmable sensor-based lighting is a great solution to save energy costs. These lights can be used in various spaces, including corporate offices, business parks, warehouses, residential apartments, hotels, and educational institutions. They are especially helpful in places like parking lots and stairwells, where they ensure lights are only on when needed

If no motion is detected, it will take only three minutes for the sensor-based light to dim back to 20%

Every EZ HOME product is insured for a good two years, starting from the date of purchase. Free repair or replacement will be provided for all eligible products under the warranty period

For all warranty-related queries, call our toll-free number, 1800-2-12345. Our call center executive will guide you

The warranty shall be rendered null and void if the product is altered, damaged, dismantled, or rectified. If the guidelines are not followed during installation and usage. If the product is burned out due to a loose connection, improper wiring, or overload (the load was greater than the product rating)

Calculate the total cost with our EZ HOME calculator

Calculate the total cost with our EZ HOME calculator

Step 1: Open Tata Power EZ Home App.

Step 2: Click on Sign In

Step 3: Enter the Registered Email/ Phone Number and Correct Password.

Step 4: Select Sign In

(i) Ensure that you have entered Registered Email/Phone Number.

(ii) Ensure that you have entered correct password.

(iii) Check the Internet Connectivity.

(iv) You may Reset the Password using "Forgot Password" option.

Step 1: Open Tata Power EZ Home App.

Step 2: Click on forgot password

Step 3: Enter the Registered Email/ Phone Number

Step 4: Click on Create code which will be sent at your registered email/phone number & enter code and enter your new password and Finish

Open Tata Power Ez Home App with sign in

Method I :

Home -> Select Device -> Device Page -> Settings button -> Device Name -> enter name -> confirm

Method II:

Long press on device -> Edit name Option-> enter name -> confirm

Following may be reason for failure in renaming device:

(i) Device is not configured and added.

(ii) Device is not powered ON.

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking ,device is showing offline in the App

(iv) No Proper Internet Connection

Open Tata Power EZ Home App with sign in

Select "More" in home page -> Go to "My rooms" ->Click on "Add" -> Select from default room / create custom Room -> select the added Devices from list -> Click on "Save".

All the selected and saved device will be shown in added new room

Following may be reason for failure in adding room:

(i) Device is not configured and added.

(ii) Device is not powered ON

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking, device is showing offline in the App

(iv) No Proper Internet Connection

Controlling multiple smart home devices with a single tap on your App

Open Tata Power Ez Home App with sign in

Method I:

Click on "Scenes" in home page -> click "+" -> Select Default Scene / create custom scene > Select "Add a new executing task" -> Select any of the configured device that you want to control throgh scenes > select ON/OFF task with delay setting ->Click on "Add" -> Select "Save" option.

Method II:

Click "+" symbol in top right corner-> Select "Add Scene" -> Select Default Scene / create custom scene > Select "Add a new executing task" -> Select any of the configured device that you want to control throgh scenes > select ON/OFF task with delay setting ->Click on "Add" -> Select "Save" option.

Following may be reason for failure in Creating Scenes:

(i) Device is not configured and added.

(ii) Device is not powered ON

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking , device is showing offline in the App

(iv) No Proper Internet Connection

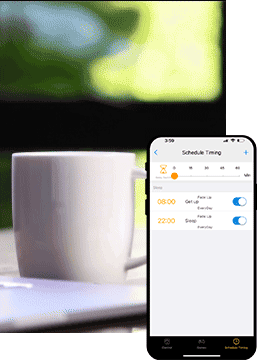

Device can be controlled (Turn ON/ OFF) automatically at the selected day and time.

Open Tata Power Ez Home App with sign in

Home -> select Device ->Click on "Schedule Timing" -> click "+" -> select the desired Hr and Min -> select action “ON/OFF” -> select days on which operation has to be performed -> Click on "save"

The device will be operated automatically at schedule timing

Following may be reason for failure in Timer option:

(i) Device is not configured and added.

(ii) Device is not Powered ON and Active.

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking , device is showing offline in the App

(iv) No Proper Internet Connection

For Schedule timing ON/OFF, no input is required by User, the device will be controlled as per set schedule time. Ensure that the Device is powered ON and under local Wi-Fi network

Associated devices (in execute task) will get automatically operated by changing the status of Primary device (in Start condition).

Open Tata Power Ez Home App with sign in

Method I:

Click "+" symbol on the top right corner of the home page -> Select "Add Automation" ->Click on "Add start condition"-> Select from added device list-> Select Turn On/Off -> Add -> Select "Add a new executing task -> select from added device list-> Select Turn On/Off -> Add -> Repeat option -> Time Duration -> "Sure" -> Click on "Save".

Method II:

Select "More" ->Select "Automation" -> "Add" > "Add start condition"-> select from added device list-> Select Turn On/Off -> Add -> "Add a new executing task -> select from added device list-> Select Turn On/Off -> Add -> Repeat option -> Time Duration -> "Sure" -> Click on "Save".

Following may be reason for failure in set automation:

(i) Device is not configured and added.

(ii) Device is not Powered ON and Active.

(iii) Device is not connected with local Wi-Fi router, the Wi-Fi LED indicator of device is blinking , device is showing offline in the App

(iv) No Proper Internet connectivity

At any given time, consumed power of the device is higher than the saved overload value, device will get automatically tripped. This protects the electronic components inside the device to get failed.

Open Tata Power Ez Home App with sign in

Home -> Select Device ->Click on Settings symbol on the top right corner of the device page -> Click on overload protection -> Enter the maximum overload value that you want to save -> Click on save

After Power restoration, the state of the device will be by default Powewr ON, Power OFF, Maintain last state as you have selected.

Open Tata Power Ez Home App with sign in

Home -> Select Device ->Click on Settings symbol on the top right corner of the device page -> Click on Power ON switch status -> Select the desired state of the device after power restoration -> Click on save

Open Tata Power Ez Home App with sign in

Click on "More" -> Select "Share Device"-> Enter the registered Email/Phone Number -> Select device from the list that you want to share-> Click on "Finish

Following may be reason for failure in sharing device:

(i)Family members / users are not registered with EZ Home App.

(ii)Email of Family members / users are not entered correctly.

(iii)Device is not configured and added.

(iv)Device is not connected to app remote online (Internet access).

(v)App is not connected to device either remotely or via Local Wi-Fi

Open Tata Power Ez Home App with sign in

Home -> Select Device ->Click on Settings symbol on the top right corner of the device page -> Click on "Edit Switch name"-> Enter switch name -> Click on save

Following may be reason for failure in renaming switch:

(i) Device is not configured and added.

(ii) Device is not powered ON.

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking,device is showing offline in the App.

(iv) No Proper Internet Connection

Switching device from current WiFi network to another new WiFi network without reconfiguring the device.

Open Tata Power Ez Home App with sign in

Home -> Select Device ->Click on Settings symbol on the top right corner of the device page -> Click on "Work mode setting"-> Enter new WiFi SSID and Password -> Click on save -> Select Confirm

Following may be reason for failure in renaming switch:

(i) Device is not configured and added.

(ii) Device is not powered ON.

(iii) Device is not connected to Wi-Fi, the Wi-Fi LED indicator of device is blinking,device is showing offline in the App

(iv) No Proper Internet Connection

(v) Device is not in Local mode with current WiFi network

You can add device in two mode Easy mode or AP mode

(i) For Easy mode you follow the process as mentioned below:

Long Press device configuration button for 5 seconds, the Wi-Fi blue indicator will start blinking fast.

In App follow: Home -> "+" or "Add smart home devices" -> Add Device -> select that particular device -> Ensure connecting mobile with Wi-Fi router network -> Enter the SSID and Password of Wi-Fi router network -> Configure signal -> click on "Blue indicator is flashing" -> % progress of configuration -> Finish.

The configured device will appear in “Home” tab under “Unclassified”.

(ii) If adding device through Easy mode failed, you can add device through AP mode following the process as mentioned below:

The device Wi-Fi blue indicator start blinking slowly.

In App follow: "Add device by AP Mode" -> Configure Signal -> Connect to Wi-fi Hotspot of selected Device named " XXXX" -> select device -> go back to app-> choose Home Wi-fi -> type SSID & password -> Configure Signal -> % progress of configuration -> Finish -> get connected to Wi-Fi router network.

The configured device will appear in "Home" tab under "Unclassified"

Important notes:

(i) Confirm the device is powered on.

(ii) Confirm the device is waiting for network configuration(blue light is blinking).

(iii) Confirm that device, smartphone and router are as close to each other to have good coverage of Wi-Fi network of router.

(iv) Make sure the network function of router and smartphone are unblocked.

(v) Confirm the entered router SSID & password are correct.

(vi) Confirm adding device is under 2.4 GHz Wi-Fi channel. Enable the broadcast and not allow to hide Wi-Fi.

(vii) Confirm that the routers encryption method is WPA2-PSK and authentication type is AES, or both are set up as automatic.

(viii) Make sure the router Wi-Fi name is only in English.

(ix) If Home Wi-Fi routers connected devices reach the amount limit. Please try to turn off some devices Wi-Fi function and configure again.

(x) If the router enables MAC address filter, please try removing the device from the MAC filter list and make sure the router is allowing the device to be connected.

(xi) Make sure the LED on Device is in pairing mode and is Blinking fast, if not then Press the Push Button on Device For 5 seconds to make BLUE indicator Flashing Fast for STA or Easy mode.

(xii) If the STA or Easy mode failed the LED on the Device should be blinking slowly, add device in AP mode.

(xiii) Make sure the device has LOCATION access. To check, navigate to device page follow.

Settings> apps > permissions >Location.

Still if you are facing the issue ,please follow the troubleshooting steps :

Restart Wi-Fi router after switching off for 1 minute for better performance, ensure that Wi-Fi network connection is stable before trying below mentioned troubleshoot process: Long press the button (left most button in case of multiple buttons) for 5 seconds and Switch off Input power to device through distribution board MCB for 1 minute. Then Power ON and long press the button (left button in case of multiple buttons) for 5 seconds and continue the process of configuration.

In case, it is still not configured, connect to Call Centre 1800-2-12345

Following may be reasons & troubleshooting:

(i) The device and cell phone are not connected to the same Wi-Fi LAN for local operation. In case of remote operation internet service is available for W-Fi router and thus EZ HOME device.

(ii) Please put the phone besides your device and make sure that mobile and device are in the same Wi-Fi router network, switch off mobile data, try to operate Google website if it is the problem of network.

(iii) If you cannot access the network, it is recommended to restart the router.

(iv) User mobile must have Internet Access.

(v) Still the Wi-Fi LED indicator of device is blinking. Then switch Off power supply to device and then power on to reboot the device.

(vi) Device is showing offline, Device is not Power ON.

(vii) If the device is connected to the network, still you are facing issue, call to our call center 1800212345

Following may be troubleshooting for device offline:

(i) Ensure device is powered on.

(ii) Please check if the network is stable.

(iii) Confirm whether the home Wi-Fi network is normal, or whether the Wi-Fi name and password have been modified. If so, remove the device and add it again. (Device removal mode: open the App and Home -> long press the device->  Click “Delete Device” and confirm to delete device for avoiding any confusion).

(iv) Please try to restart the router by switching power Off & ON, wait 3 minutes and observe the status of the device;

(v) If issue persists, connect to Call Centre 1800-2-12345

Unable to control devices through App, the functions are not effective after control. Following may be the reasons:

(i) It is recommended that you keep the App open for few seconds and observe whether the device is still offline or online in App.

(ii) It might be due to bad Wi-Fi network environment.

(iii) Device is offline, Wi-Fi blue led indicator of device is blinking.

(iv) Device is not power on.

(v) If the device is still online in App, please put the phone besides your device and make sure that mobile and device are in the same Wi-Fi router network, switch off mobile data, try to operate Google website if it is the problem of network.

(vi) If the device is online, network is good, but still can’t control, connect to call center 1800212345

a) Download the Google Home

b) In the "Google Home App" Click on "+" icon

c) Click on Set up device

d) Click on works with google option

e) Search for "Tata Power EZ HOME"

f) Login With Your Tata Power EZ HOME Account credentials

g) After successfully linking Go Back to the home page

h) Your EZ HOME smart switches show in the "linked to you" section

i) Start operating through voice command
